Chip on Board (COB) LED Lighting: Technology, Benefits & Applications

What Is COB LED Lighting?

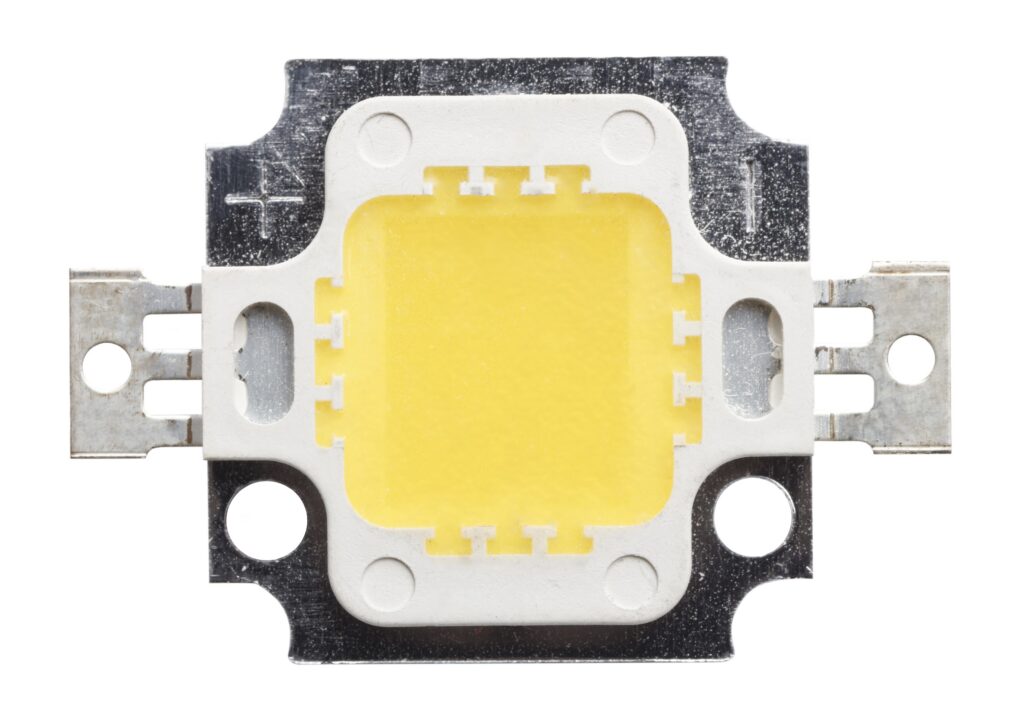

COB (Chip on Board) lighting is an advanced form of LED (Light Emitting Diode) technology that delivers higher efficiency, brightness, and uniformity compared to earlier LED designs. In COB LEDs, multiple LED chips are directly mounted onto a single substrate, usually made from aluminum or ceramic, which acts as a heat sink to manage temperature. The result is a compact, high-density light source capable of producing bright, even illumination with excellent thermal performance.

The Evolution of LED Technology

LED technology has progressed rapidly over the past decades. Early “discrete” LEDs were single light sources wired together, followed by SMD (Surface Mount Device) LEDs, which grouped multiple diodes on a single board. COB technology takes this evolution further by integrating dozens of LED chips directly onto the substrate itself, removing the need for separate packaging. This advancement provides superior light density, reduced glare, and improved energy efficiency.

Compared to SMD LEDs, COB modules produce smoother, shadow-free light and achieve higher lumen-per-watt ratios. This makes them ideal for lighting applications where consistent, natural-looking illumination is essential, such as architectural lighting, retail environments, and industrial spaces.

Key Features of COB Lighting

COB LEDs stand out for their ability to produce high light output from a compact source. The close arrangement of multiple LED chips reduces light loss and creates a more uniform beam. Unlike older LED formats that can create visible “dots” or uneven lighting, COB modules generate a smooth, continuous light field that closely resembles traditional halogen or incandescent light — but with far greater efficiency.

Thermal management is another major advantage. Because all LED chips are mounted on a single substrate, heat is efficiently dispersed through the built-in heat sink. This allows COB LEDs to operate at lower temperatures, enhancing performance and extending lifespan. The result is a lighting solution that delivers both high brightness and long-term reliability.

Applications of COB Lighting

Thanks to their high efficiency and compact design, COB LEDs are used across multiple sectors:

• Residential Lighting: Common in downlights, spotlights, and ceiling fixtures where soft, uniform light is desirable.
• Commercial Lighting: Ideal for offices, retail spaces, and hospitality settings that require bright, consistent illumination with low energy use.
• Industrial Lighting: Used in high bay and low bay lighting, streetlights, and floodlights where high lumen output and durability are essential.
• Retail & Hospitality: Perfect for accent lighting, product displays, and creating welcoming atmospheres in hotels, restaurants, and galleries.

Advantages of COB LED Technology

COB LEDs deliver several performance advantages over traditional and earlier LED types:

• High Efficiency: COB LEDs provide more lumens per watt, converting more energy into light and less into heat.
• Superior Light Quality: The uniform output eliminates hotspots, producing smooth illumination with excellent colour rendering.
• Compact Design: Multiple chips in one module reduce component count, making COB fixtures smaller and more efficient.
• Long Lifespan: Effective heat dissipation extends operating life — often exceeding 50,000 hours of continuous use.
• Low Maintenance: Durable construction and reduced thermal stress mean fewer replacements and lower upkeep costs.

Future Trends in COB Lighting

The future of COB lighting is bright, with innovations focusing on improved chip efficiency, better colour accuracy, and enhanced thermal materials. Researchers are developing new ceramic and graphene-based substrates to further reduce heat and extend lifespan. At the same time, advances in manufacturing are enabling more compact, higher-power COB modules at lower costs.

Integration with smart lighting systems is also expanding. COB LEDs are increasingly used in intelligent lighting setups where users can control brightness, colour temperature, and timing via connected devices. This combination of energy efficiency, performance, and automation positions COB technology as a cornerstone of next-generation lighting systems.

Conclusion

Chip on Board (COB) LED lighting represents a major leap forward in modern illumination. Offering exceptional brightness, energy efficiency, and durability, COB LEDs are now widely used across residential, commercial, and industrial environments. With continued advances in materials and smart integration, COB lighting will play a leading role in shaping the future of efficient, sustainable, and high-quality lighting solutions.
